Sacmi Intesa Filter Unit 8QA601350

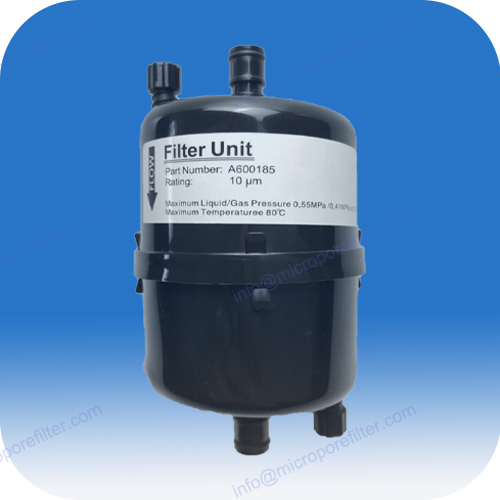

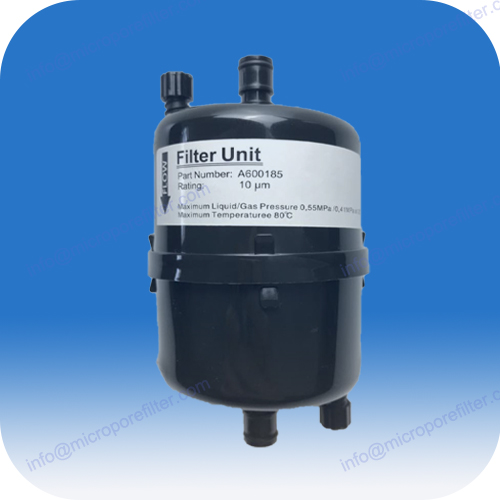

A600185  filter capsule is special use for digital printing systems in order to increased ink flow rates.It assembled with an opaque exterior shell to protect against UV-light intrusion, large-bore connections to minimize pressure loss, and a wide range of industry-accepted media appropriate for most digital printing applications. It has short and long  type with CPC fitting,  Filter media offerings most of 10 μm to 20 μm.

Features:

Ø   Assembly with high flow capacity polypropylene filter, It maximum pressure is 5.5Bar (80Psi）and maximum operation temperature is 50°C（122°F）. It is a critical combination in high-flow recirculating ink systems.

Ø The black polypropylene exterior housing protects against UV light and prevents ink from curing inside the filter.  This capsule is also suitable for ink chemistries that are not UV curable.

Ø  With excellent big capability and make the filter caspules with long life.

Ø  Standard CPC connections at both side to minimize pressure loss and available add connections.

Ø  With heavy-duty, compression-fitting vents allow for venting at start-up or periodic venting or serve as connections for continuous venting, if required.

Ø  The polypropylene construction of the filter capsule makes it suitable for use with most ink jet ink formulations.
